JS1 Series

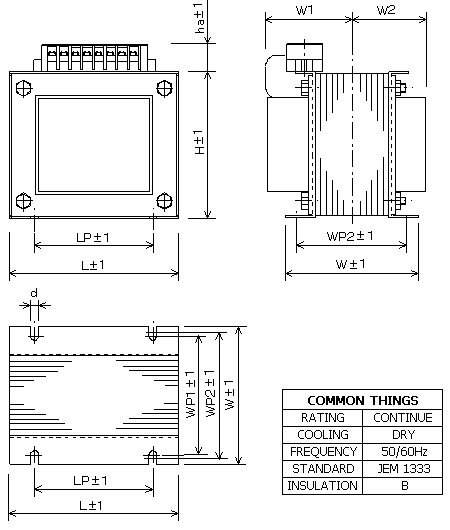

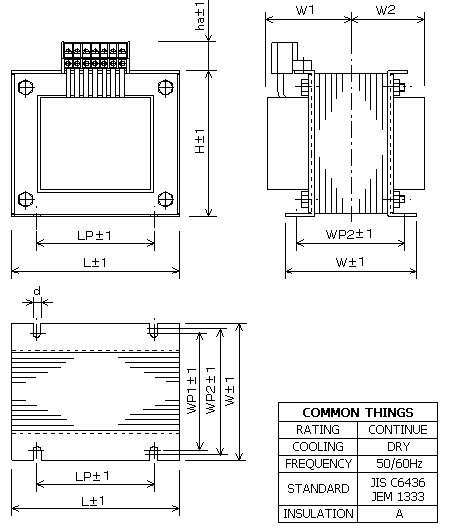

The dimensions is likely to change for specification.
100VA - 1KVA 50Hz - 60Hz
Capacity
(VA) |
Type |
Dimensions |
Weight
(Kg) |
| L |
Lp |
W |
Wp1 |
Wp2 |
W1 |
W2 |
H |
ha |
d |
| 100 |
JS1-21-100 |
87 |
60 |
76 |
60 |
65 |
60 |
40 |
78 |
29 |
5 |
2.1 |
| JS1-41-100 |
26 |
| JS1-42-100 |
26 |
| 200 |
JS1-21-200 |
97 |
70 |
86 |
70 |
75 |
65 |
45 |
85 |
29 |
5 |
3.3 |
| JS1-41-200 |
26 |
| JS1-42-200 |
26 |
| 300 |
JS1-21-300 |
115 |
85 |
100 |
70 |
75 |
65 |
50 |
98 |
29 |
7 |
4.7 |
| JS1-41-300 |
26 |
| JS1-42-300 |
26 |
| 500 |
JS1-21-500 |
133 |
95 |
105 |
75 |
80 |
70 |
55 |
115 |
29 |
7 |
7.0 |
| JS1-41-500 |
26 |
| JS1-42-500 |
26 |
| 1K |
JS1-21-1000 |
152 |
100 |
125 |
105 |
110 |
75 |
60 |
132 |
30 |
8 |
11.0 |
| JS1-41-1000 |
28 |
| JS1-42-1000 |
28 |
1.5KVA - 3KVA 50Hz - 60Hz
Capacity
(VA) |
Type |
Dimensions |
Weight
(Kg) |
| L |
Lp |
W |
Wp1 |
Wp2 |
W1 |
W2 |
H |
ha |
d |
| 1.5K |
JS1-21-1500 |
190 |
120 |
140 |
110 |
115 |
100 |
70 |
168 |
32 |
10 |
18.5 |
| JS1-41-1500 |
| JS1-42-1500 |
| 2K |
JS1-21-2000 |
190 |
120 |
155 |
125 |
130 |
110 |
80 |
168 |
32 |
10 |
22.0 |
| JS1-41-2000 |
| JS1-42-2000 |
| 3K |
JS1-21-3000 |
190 |
120 |
190 |
160 |
165 |
140 |
110 |
168 |
32 |
10 |
30.0 |
| JS1-41-3000 |
| JS1-42-3000 |
|
